枣ZjEB1c基因在果形调控中的表达特征与功能分析

doi:10.7525/j.issn.1673-5102.2026.05.011

摘要/Abstract

摘要：

为明确枣（Ziziphus jujuba）EB1家族成员ZjEB1c在果实形状建成中的作用，对京枣39基因组中的EB1家族成员进行了鉴定，并分析了其在7个枣品种7个发育时期中的表达特征；同时构建ZjEB1c过表达载体，在番茄（Solanum lycopersicum）中开展异源遗传转化，结合果实表型观察与转录组测序分析其调控作用。结果表明：枣中共鉴定出2个EB1家族成员，即ZjEB1a和ZjEB1c。ZjEB1c在果实发育中期（开花后50~78 d）表达上调，且在长果型品种中的表达量较高。3个独立转基因番茄品系果实的平均果形指数由野生型番茄果实的0.928提高至1.117~1.168，纵向基部中果皮单位面积细胞数量明显增加。转录组比较分析共鉴定出744个共同差异表达基因，主要富集于激素信号转导及细胞壁/果胶代谢相关通路。综合分析表明，ZjEB1c与果实纵向伸长密切相关，并暗示其可能通过激素信号转导和细胞分裂相关过程参与果实形状形成。

关键词: 枣, 果实形状, 微管相关蛋白, ZjEB1c基因

Abstract:

To clarify the role of the jujube（Ziziphus jujuba） EB1 family member ZjEB1c in fruit shape formation， EB1 family members in the Jingzao 39 genome were identified， and their expression patterns were analyzed across seven developmental stages in seven jujube cultivars. Meanwhile， an overexpression vector of ZjEB1c was constructed and heterologously transformed into tomato（Solanum lycopersicum）， and its regulatory effects were investigated through fruit phenotypic observation and transcriptome sequencing. The results showed that two EB1 family members， ZjEB1a and ZjEB1c， were identified in jujube. ZjEB1c was upregulated during the middle stage of fruit development（50-78 days post-anthesis）， and its expression level was higher in long-fruit cultivars. Compared with the wild type， the average fruit shape index of three independent transgenic tomato lines increased from 0.928 to 1.117-1.168， and the number of mesocarp cells per unit area increased significantly at the longitudinal base. 744 commonly differentially expressed genes were identified through comparative transcriptome analysis， which were mainly enriched in hormone signal transduction， cell wall and pectin metabolism-related pathways. Comprehensive analysis indicated that ZjEB1c was closely associated with fruit longitudinal elongation and suggested that it participated in fruit shape formation through the processes related to hormone signal transduction and cell division.

Key words: jujube, fruit shape, microtubule-associated protein, ZjEB1c

中图分类号:

S665.1

付文清, 马荣申, 任悦, 李梓萌, 王旭, 薄文浩. 枣ZjEB1c基因在果形调控中的表达特征与功能分析[J]. 植物研究, 2026, 46(5): 899-912.

Wenqing FU, Rongshen MA, Yue REN, Zimeng LI, Xu WANG, Wenhao BO. Expression Characteristics and Functional Analysis of the Jujube Gene ZjEB1c in Fruit Shape Regulation[J]. Bulletin of Botanical Research, 2026, 46(5): 899-912.

图/表 6

表1

表2

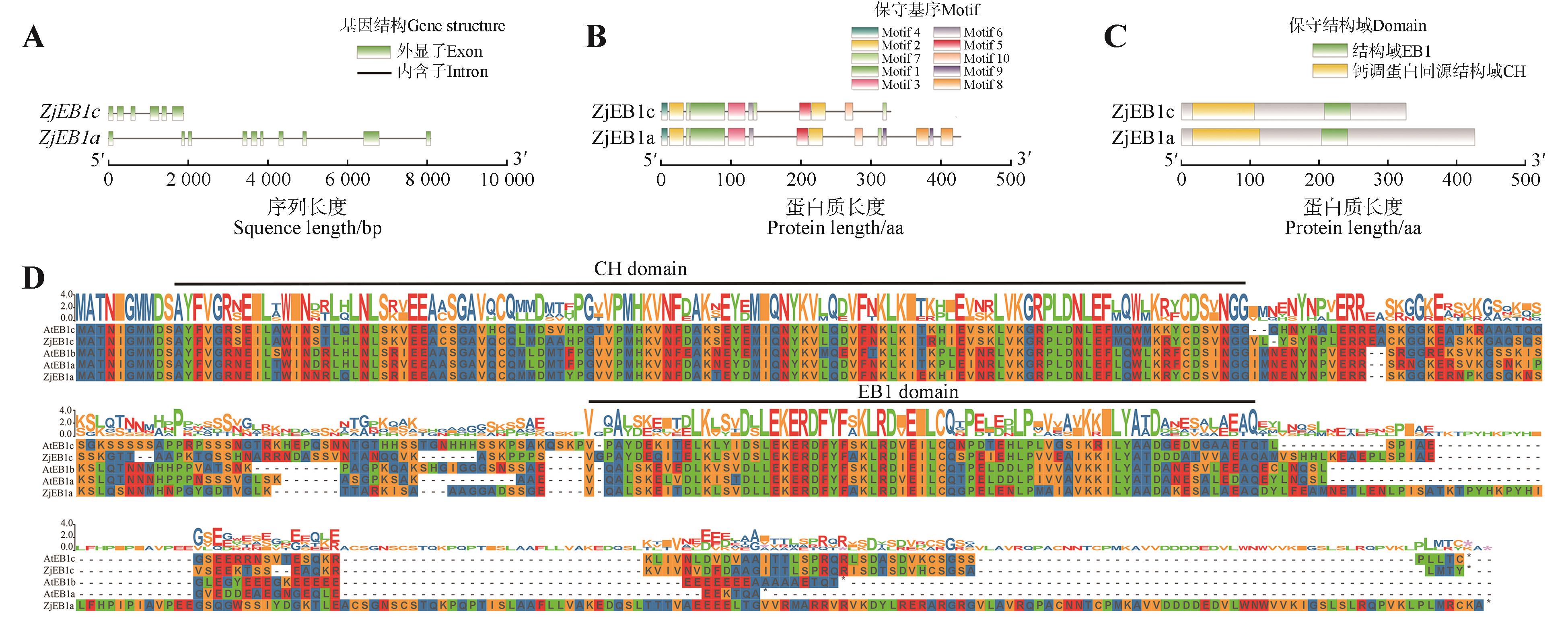

图1

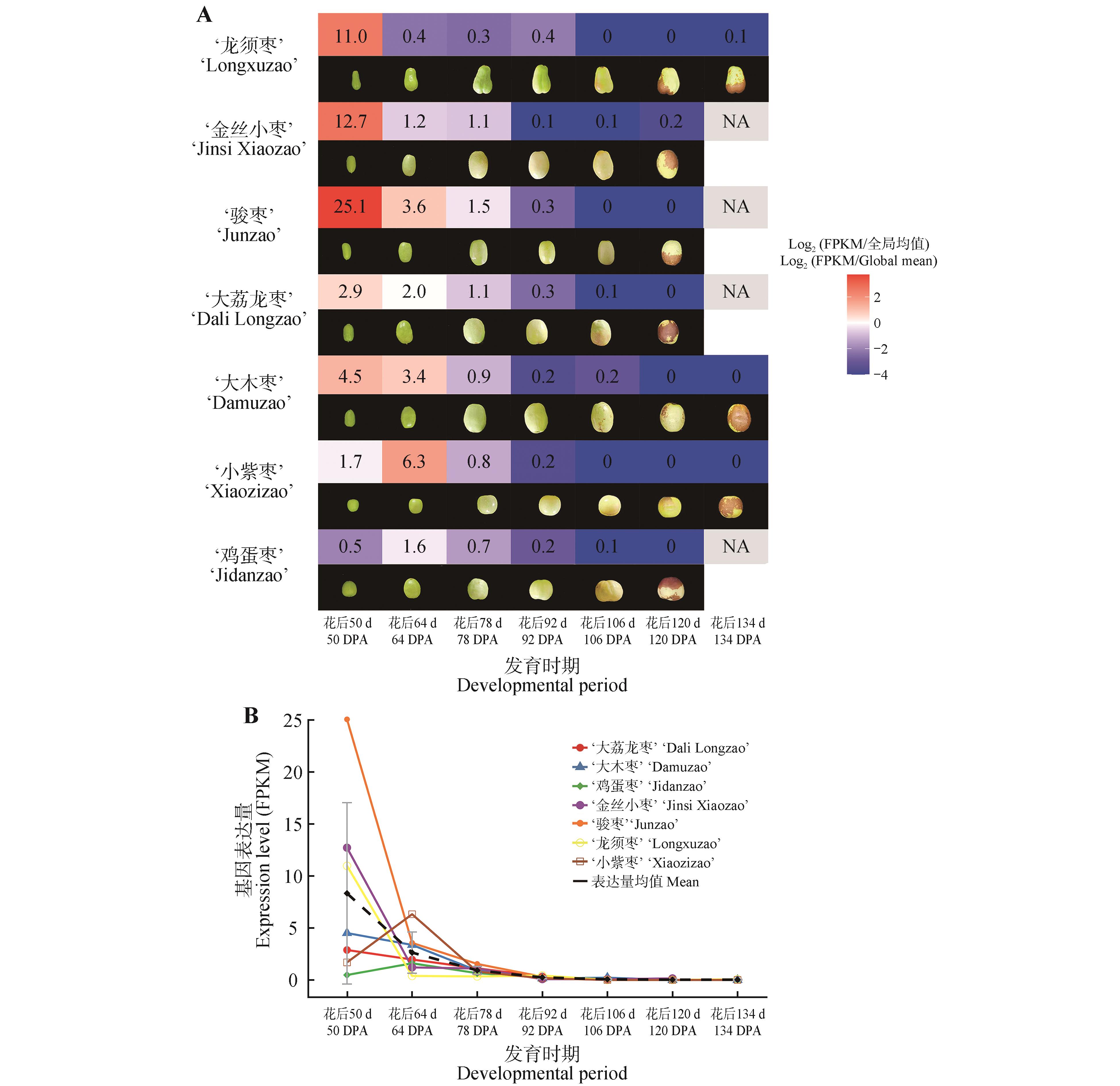

图2

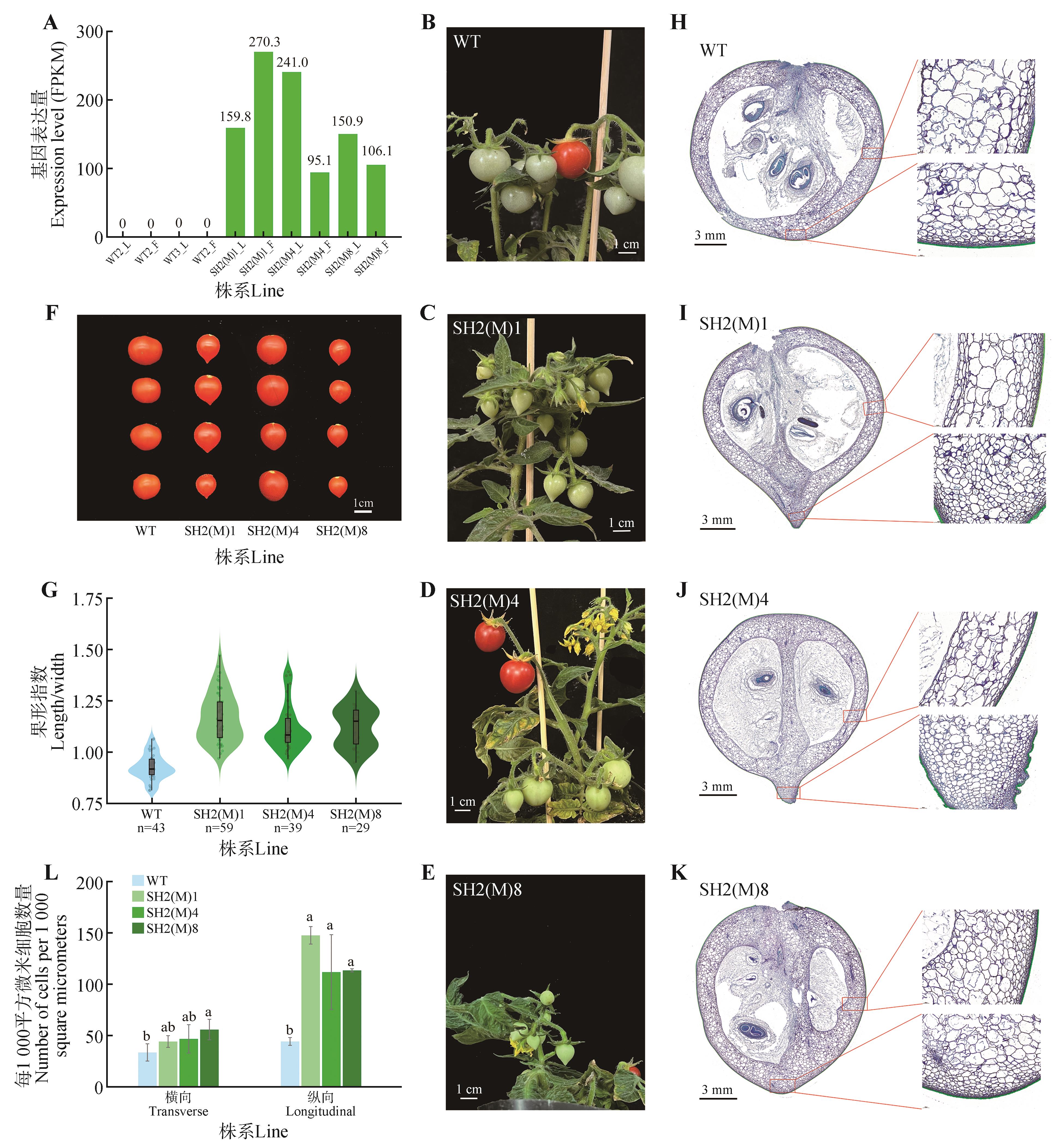

图3

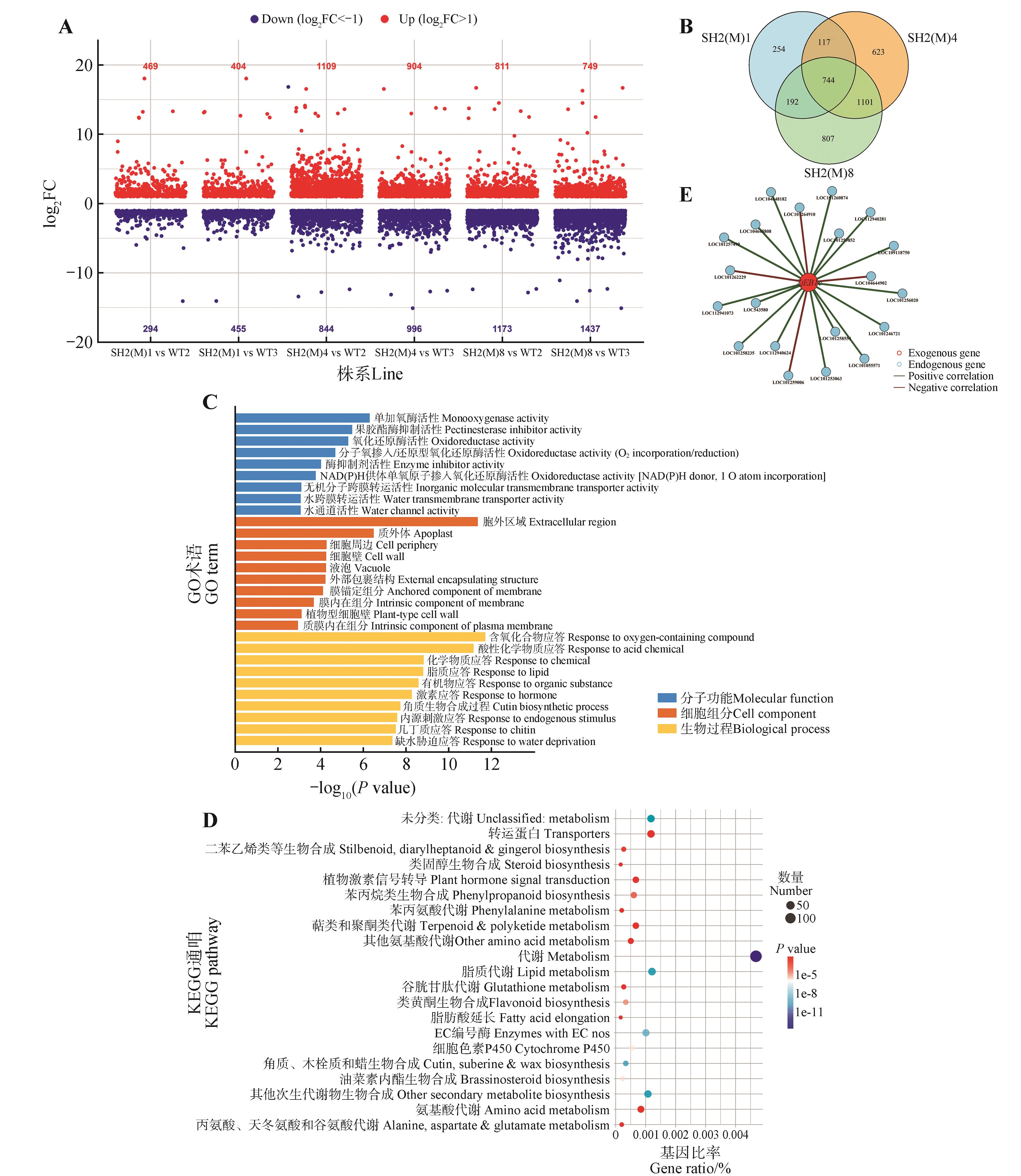

图4

参考文献 46

[1]	刘孟军，王玖瑞，刘平，等.中国枣生产与科研成就及前沿进展［J］.园艺学报，2015，42（9）：1683-1698.
	Liu Mengjun， Wang Jiurui， Liu Ping，et al.Historical achievements and frontier advances in the production and research of Chinese jujube（Ziziphus jujuba） in China［J］.Acta Horticulturae Sinica，2015，42（9）：1683-1698.
[2]	Herrera-Ubaldo H.Not another round：microtubule-associated proteins and the control of fruit shape in tomato［J］.The Plant Cell，2023，35（12）：4195-4196.
[3]	Xue Z Y， Yang R， Wang Y D，et al.Candidate gene mining of GA-mediated regulation of pear fruit shape［J］.Horticulture，Environment，and Biotechnology，2024，65（3）：403-412.
[4]	Xie Y， Liu X F， Sun C Z，et al. CsTRM5 regulates fruit shape via mediating cell division direction and cell expansion in cucumber［J］.Horticulture Research，2023，10（3）：uhad007.
[5]	Guo X K， Zhang Y， Tu Y，et al.Overexpression of an EIN3-binding F-box protein2-like gene caused elongated fruit shape and delayed fruit development and ripening in tomato［J］.Plant Science，2018，272：131-141.
[6]	Muños S， Ranc N， Botton E，et al.Increase in tomato locule number is controlled by two single-nucleotide polymorphisms located near WUSCHEL［J］.Plant Physiology，2011，156（4）：2244-2254.
[7]	Wu S， Xiao H， Cabrera A，et al.SUN regulates vegetative and reproductive organ shape by changing cell division patterns［J］.Plant Physiology，2011，157（3）：1175-1186.
[8]	Zheng H， Dong Y， Nong H L，et al. VvSUN may act in the auxin pathway to regulate fruit shape in grape［J］.Horticulture Research，2022，9：uhac200.
[9]	Hamada T.Microtubule organization and microtubule-associated proteins in plant cells［M］//Jeon K W. International review of cell and molecular biology.Amsterdam：Elsevier，2014：1-52.
[10]	Wang X， Zheng F， Yi Y Y，et al.Ubiquitination of CLIP-170 family protein restrains polarized growth upon DNA replication stress［J］.Nature Communications，2022，13：5565.
[11]	Garhewal A， Angres G J， Muroyama A.The polar code for patterning：how polarity and the cytoskeleton orchestrate asymmetric cell division during plant development［J］.Frontiers in Cell and Developmental Biology，2025，13：1618444.
[12]	Ma C， Chang J B， Hazelwood O S，et al.Establishing cell polarity in plants：the role of cytoskeletal structures and regulatory pathways［J］.Frontiers in Cell and Developmental Biology，2025，13：1602463.
[13]	Hamada T.Microtubule-associated proteins in higher plants［J］.Journal of Plant Research，2007，120（1）：79-98.
[14]	Zhang P Y， Zhu G N， Zhang C J，et al.Functional analysis of tomato MAP65 gene family，highlighting SlMAP65-1’s role in fruit morphogenesis［J］.Journal of Integrative Agriculture，2025，24（2）：564-574.
[15]	Galva C， Kirik V， Lindeboom J J，et al.The microtubule plus-end tracking proteins SPR1 and EB1b interact to maintain polar cell elongation and directional organ growth in Arabidopsis ［J］.The Plant Cell，2014，26（11）：4409-4425.
[16]	刘晓霞.光介导旱柳SmSPR1调控微管延伸及细胞扩张分子机理的研究［D］.北京：中国林业科学研究院，2020.
	Liu Xiaoxia.The molecular mechanism of light-mediated SmSPR1 regulating microtubule elongation and cell expansion［D］.Beijing：Chinese Academy of Forestry，2020.
[17]	Bisgrove S R， Lee Y J， Liu B，et al.The microtubule plus-end binding protein EB1 functions in root responses to touch and gravity signals in Arabidopsis ［J］.The Plant Cell，2008，20（2）：396-410.
[18]	Komaki S， Abe T， Coutuer S，et al.Nuclear-localized subtype of end-binding 1 protein regulates spindle organization in Arabidopsis ［J］.Journal of Cell Science，2010，123（3）：451-459.
[19]	申志华.增强UV-B辐射对拟南芥EB1c的影响［D］.临汾：山西师范大学，2018.
	Shen Zhihua.Effects of enhanced UV-B radiation on EB1c of Arabidopsis ［D］.Linfen：Shanxi Normal University，2018.
[20]	Ren Y， Fu W Q， Gao Y，et al.Identification of key genes of fruit shape variation in jujube with integrating elliptic Fourier descriptors and transcriptome［J］.Plants，2024，13（9）：1273.
[21]	Chen C J， Chen H， Zhang Y，et al.TBtools：an integrative toolkit developed for interactive analyses of big biological data［J］.Molecular Plant，2020，13（8）：1194-1202.
[22]	Tamura K， Stecher G， Kumar S.MEGA11：molecular evolutionary genetics analysis version 11［J］.Molecular Biology and Evolution，2021，38（7）：3022-3027.
[23]	Park S H， Morris J L， Park J E，et al.Efficient and genotype-independent Agrobacterium-mediated tomato transformation［J］.Journal of Plant Physiology，2003，160（10）：1253-1257.
[24]	Hepworth J， Lenhard M.Regulation of plant lateral-organ growth by modulating cell number and size［J］.Current Opinion in Plant Biology，2014，17：36-42.
[25]	Rogers S L， Rogers G C， Sharp D J，et al. Drosophila EB1 is important for proper assembly，dynamics，and positioning of the mitotic spindle［J］.The Journal of Cell Biology，2002，158（5）：873-884.
[26]	Su L K， Qi Y.Characterization of human MAPRE genes and their proteins［J］.Genomics，2001，71（2）：142-149.
[27]	Tirnauer J S， Bierer B E.Eb1 proteins regulate microtubule dynamics，cell polarity，and chromosome stability［J］.The Journal of Cell Biology，2000，149（4）：761-766.
[28]	Bu W， Su L K.Characterization of functional domains of human EB1 family proteins［J］.Journal of Biological Chemistry，2003，278（50）：49721-49731.
[29]	Hayashi I， Ikura M.Crystal structure of the amino-terminal microtubule-binding domain of end-binding protein 1（EB1）［J］.Journal of Biological Chemistry，2003，278（38）：36430-36434.
[30]	Chen S， Wang X J， Tan G F，et al.Gibberellin and the plant growth retardant Paclobutrazol altered fruit shape and ripening in tomato［J］.Protoplasma，2020，257（3）：853-861.
[31]	Yang Y F， Ji Y J， Wang K R，et al.RNA editing factor SlORRM2 regulates the formation of fruit pointed tips in tomato［J］.Plant Physiology，2024，195（4）：2757-2771.
[32]	van der Knaap E， Østergaard L.Shaping a fruit：developmental pathways that impact growth patterns［J］.Seminars in Cell & Developmental Biology，2018，79：27-36.
[33]	van der Knaap E， Chakrabarti M， Chu Y H，et al.What lies beyond the eye：the molecular mechanisms regulating tomato fruit weight and shape［J］.Frontiers in Plant Science，2014，5：227.
[34]	Wen J， Li Q， Tao X，et al.Integrated analysis of transcriptomes and pectinase gene families reveals a novel pathway mediating tomato fruit malformation［J］. International Journal of Molecular Sciences，2025，26（21）：10739.
[35]	Micheli F.Pectin methylesterases：cell wall enzymes with important roles in plant physiology［J］.Trends in Plant Science，2001，6（9）：414-419.
[36]	Green P B.Mechanism for plant cellular morphogenesis［J］.Science，1962，138（3548）：1404-1405.
[37]	Wymer C， Lloyd C.Dynamic microtubules：implications for cell wall patterns［J］.Trends in Plant Science，1996，1（7）：222-228.
[38]	Qi X L， Liu C L， Song L L，et al.PaCYP78A9，a cytochrome P450，regulates fruit size in sweet cherry （Prunus avium L.）［J］.Frontiers in Plant Science，2017，8：2076.
[39]	Mäkilä R， Wybouw B， Smetana O，et al.Gibberellins promote polar auxin transport to regulate stem cell fate decisions in cambium［J］.Nature Plants，2023，9（4）：631-644.
[40]	Vukašinović N， Hsu C W， Marconi M，et al.Polarity-guided uneven mitotic divisions control brassinosteroid activity in proliferating plant root cells［J］.Cell，2025，188（8）：2063-2080.
[41]	陈慧泽，刁丽曼，周佳佳，等.油菜素内酯与其他植物激素互作调控植物生长发育及胁迫响应的研究进展［J］.植物研究，2024，44（6）：812-821.
	Chen Huize， Diao Liman， Zhou Jiajia，et al.Advances on the crosstalk of brassinolide with other phytohormones in plant growth，development，and stress response［J］.Bulletin of Botanical Research，2024，44（6）：812-821.
[42]	Wang C H， Xin M， Zhou X Y，et al.The novel ethylene-responsive factor CsERF025 affects the development of fruit bending in cucumber［J］.Plant Molecular Biology，2017，95（4）：519-531.
[43]	Wang Y P， Clevenger J P， Illa-Berenguer E，et al.A comparison of sun，ovate，fs8.1 and auxin application on tomato fruit shape and gene expression［J］.Plant and Cell Physiology，2019，60（5）：1067-1081.
[44]	Li H J， Xu T D， Lin D S，et al.Cytokinin signaling regulates pavement cell morphogenesis in Arabidopsis ［J］.Cell Research，2013，23（2）：290-299.
[45]	Parapunova V， Busscher M， Busscher-Lange J，et al.Identification，cloning and characterization of the tomato TCP transcription factor family［J］.BMC Plant Biology，2014，14（1）：157.
[46]	Yang T B， Peng H， Whitaker B D，et al.Characterization of a calcium/calmodulin-regulated SR/CAMTA gene family during tomato fruit development and ripening［J］.BMC Plant Biology，2012，12（1）：19.

编号 Number	引物名称 Primer name	序列（5′→3′） Sequence（5′→3′）
1	ZjEB1c-F	ATGGCGACGAACATTGGTATG
2	ZjEB1c-R	CTAGTAGGTCATAAGAGCTG
3	pBI121-ZjEB1c-F	GAGAACACGGGGGACTCTAGATGGCGACGAACATTGTATGATGGATTC
4	pBI121-ZjEB1c-R	GGGAAATTCGAGCTCGGTACCTAGTAGGTCATAAGAGCTGATCCACTG
5	35S	TTCATTTGGAGAGAACACGGGGGAC
6	NOS	CAAGACCGGCAACAGGATTCAATC

编号 Number	基因ID Gene ID	皮尔逊相关系数 Pearson correlation coefficient	推测功能 Putative function
1	101259852	0.999 089	内切葡聚糖酶16 Endoglucanase 16
2	101253063	0.999 089	色氨酸N-单加氧酶CYP79A68样蛋白 Tryptophan N-monooxygenase CYP79A68-like
3	101260874	0.994 657	核糖核酸酶3样蛋白2样蛋白 Ribonuclease 3-like protein 2-like
4	101256020	0.993 607	丝氨酸/苏氨酸蛋白激酶STY17 Serine/threonine-protein kinase STY17
5	543580	0.993 285	ER6蛋白 ER6 protein
6	101257490	0.992 775	蛋白转运蛋白SEC16B同源蛋白 Protein transport protein SEC16B homolog
7	101262229	-0.992 040	可能的6-磷酸葡萄糖酸内酯酶4（叶绿体） Probable 6-phosphogluconolactonase 4，chloroplastic
8	101258554	0.992 026	受体样蛋白14 Receptor-like protein 14
9	101055571	0.991 905	钙调蛋白结合转录因子SR1L Calmodulin-binding transcription factor SR1L
10	101264910	-0.990 710	30S核糖体蛋白S17（叶绿体） 30S ribosomal protein S17，chloroplastic
11	101258235	0.988 833	I型肌醇多磷酸5-磷酸酶12样蛋白 Type I inositol polyphosphate 5-phosphatase 12-like
12	101246721	0.988 804	Scarecrow样蛋白14 Scarecrow-like protein 14
