Analysis of Growth Traits and Anatomical Structures of Doubled Haploid Lines of Populus simonii × P. nigra

doi:10.7525/j.issn.1673-5102.2025.06.006

Abstract

Abstract:

Compared with traditional breeding method， the doubled haploid （DH） induction technology can effectively shorten the breeding cycle and quickly obtain homozygous lines of trees. Due to the difficulty in inducing DH in trees， it is hard to establish large-scale DH genetic populations， therefore， there are currently few reports on the genetic variation of DH populations in trees. In this study， the growth traits， leaf phenotypes and anatomical characteristics of donor tree of Populus simonii × P. nigra and four DH lines were analyzed. The results showed that the DH lines had obvious growth defects. The height， ground diameter， number of stem nodes， leaf length， leaf width and leaf area of DH lines were significantly lower than those of donor trees. Anatomical analysis of the apical buds revealed distinct morphological differences in the apical meristem growth points between donor trees and DH lines. The observation and analysis of the paraffin sections of the stems and the tissue staining showed that the vascular cambium of DH lines was relatively smaller， the average area of each vessel cell was smaller， and the number of vessel and fiber cells was significantly higher than that of donor trees. This study revealed the defects of DH lines in secondary growth， and will provide a material basis for subsequent research on the function analysis of specific genes and the optimization of breeding strategies.

Key words: Populus simonii × P. nigra, doubled haploid, growth traits, anatomical structures

CLC Number:

S722.3

Yunbo XU, Heng ZHANG, Caixia LIU, Meng WANG, Yuhang LIU, Qiuyu WANG, Mingyuan MAI, Guanzheng QU. Analysis of Growth Traits and Anatomical Structures of Doubled Haploid Lines of Populus simonii × P. nigra[J]. Bulletin of Botanical Research, 2025, 45(6): 888-897.

Figures/Tables 9

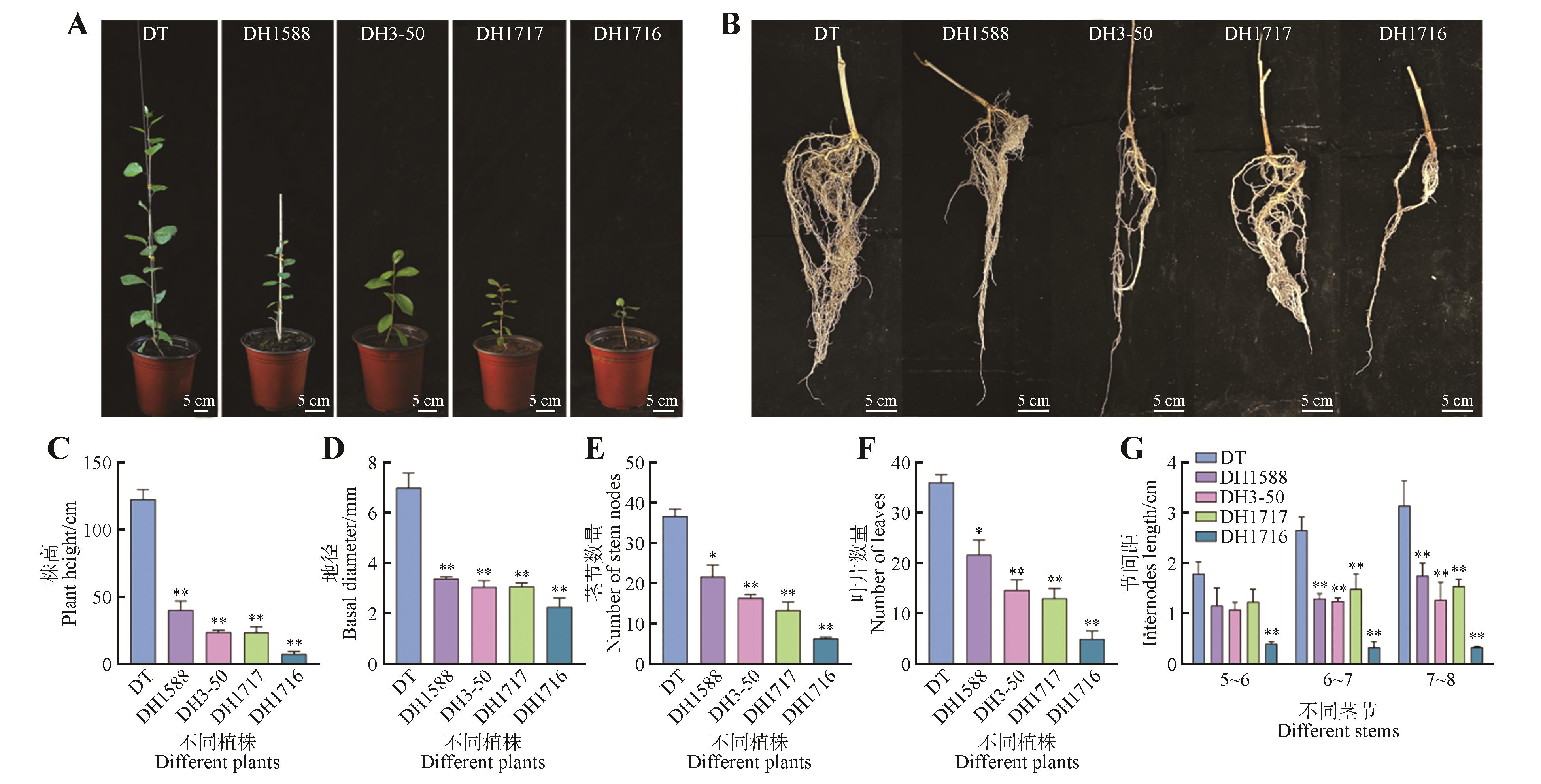

Fig.1

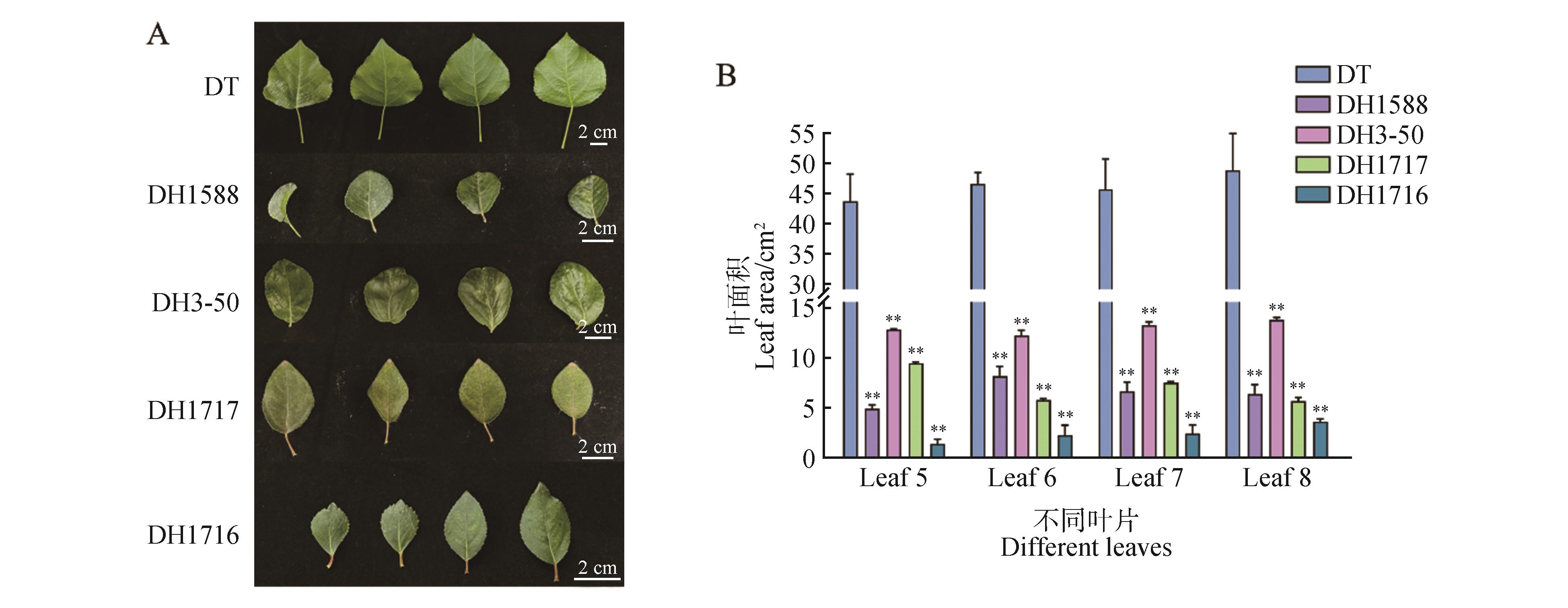

Fig.2

Table 1

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

References 36

[1]	胡建斌，李建吾，孙守如，等.植物单倍体材料创制方法及其应用［J］.贵州农业科学，2007，35（4）：135-137.
	HU J B， LI J W， SUN S R，et al.Methods for creating plant haploid materials and its application［J］.Guizhou Agricultural Sciences，2007，35（4）：135-137.
[2]	GUHA S， MAHESHWARI S C. In vitro production of embryos from anthers of Datura ［J］.Nature，1964，204：497.
[3]	LV J， YU K， WEI J，et al.Generation of paternal haploids in wheat by genome editing of the centromeric histone CENH3 ［J］.Nature Biotechnology，2020，38：1397-1401.
[4]	KERMICLE J L.Androgenesis conditioned by a mutation in maize［J］.Science，1969，166（3911）：1422-1424.
[5]	FERRIE A M R， CASWELL K L.Isolated microspore culture techniques and recent progress for haploid and doubled haploid plant production［J］.Plant Cell，Tissue and Organ Culture，2010，104：301-309.
[6]	WANG B B， ZHU L， ZHAO B B，et al.Development of a haploid-inducer mediated genome editing system for accelerating maize breeding［J］.Molecular Plant，2019，12（4）：597-602.
[7]	JIANG G H， HONG X Y， XU C G，et al.Identification of quantitative trait loci for grain appearance and milling quality using a doubled-haploid rice population［J］.Journal of Integrative Plant Biotechnology，2005，47（11）：1391-1403.
[8]	CHU C G， XU S S， FRIESEN T L，et al.Whole genome mapping in a wheat doubled haploid population using SSRs and TRAPs and the identification of QTL for agronomic traits［J］.Molecular Breeding，2008，22：251-266.
[9]	韩雅利，史丽丽，王磊，等.玉米孤雌生殖诱导育种法的研究进展［J］.山西农业科学，2021，49（10）：1242-1246.
	HAN Y L， SHI L L， WANG L，et al.Research progress on breeding methods of parthenogenesis induction in maize［J］.Journal of Shanxi Agricultural Sciences，2021，49（10）：1242-1246.
[10]	CHEN C， ZHANG Y L， LIU C X，et al.Vitamin and zeatin treatments promote colchicine-induced haploid chromosome doubling in maize［J］.The Crop Journal，2024，12（6）：1677-1685.
[11]	WANG D， ZHONG Y， FENG B，et al.The RUBY reporter enables efficient haploid identification in maize and tomato［J］.Plant Biotechnology Journal，2023，21（8）：1707-1715.
[12]	杨忠慧，杨木军，李绍祥，等.小麦DH高效生产技术体系在云南的研究与应用［J］.麦类作物学报，2023，43（10）：1311-1318.
	YANG Z H， YANG M J， LI S X，et al.Study and application of technological system for efficient production of wheat double haploid in Yunnan［J］.Journal of Triticeae Crops，2023，43（10）：1311-1318.
[13]	ZHONG Y， CHEN B J， WANG D，et al. In vivo maternal haploid induction in tomato［J］.Plant Biotechnology Journal，2022，20（2）：250-252.
[14]	赵振利，张淑静，范国强.林木单倍体研究进展［J］.河南农业大学学报，2023，57（2）：179-185.
	ZHAO Z L， ZHANG S J， FAN G Q.Research progress of haploid in forest tree［J］.Journal of Henan Agricultural University，2023，57（2）：179-185.
[15]	朱末，闻竟，李世界，等.玉米单倍体育种技术研究进展［J］.东北农业科学，2023，48（6）：64-68.
	ZHU M， WEN J， LI S J，et al.Advancements in research on haploid breeding technology in maize［J］.Journal of Northeast Agricultural Sciences，2023，48（6）：64-68.
[16]	STOEHR M， ZSUFFA L.Genetic evaluation of haploid clonal lines of a single donor plant of Populus maximowiczii ［J］.Theoretical and Applied Genetics，1990，80（4）：470-474.
[17]	LI Y， LI H， CHEN Z，et al.Haploid plants from anther cultures of poplar （Populus × beijingensis）［J］.Plant Cell，Tissue and Organ Culture，2013，114（1）：39-48.
[18]	LI Y， WEI H R， YANG J，et al.High-quality de novo assembly of the Eucommia ulmoides haploid genome provides new insights into evolution and rubber biosynthesis［J］.Horticulture Research，2020，7（1）：183.
[19]	孟繁君，熊忠平，范海娟，等.转基因单倍体小黑杨对天幕毛虫的抗性分析［J］.东北林业大学学报，2007，35（2）：38-39.
	MENG F J， XIONG Z P， FAN H J，et al.Resistance of transgenic haploid xiaohei poplar to tent caterpillars［J］.Journal of Northeast Forestry University，2007，35（2）：38-39.
[20]	PERERA P I P， HOCHER V， VERDEIL J L，et al.Unfertilized ovary：a novel explant for coconut （Cocos nucifera L.） somatic embryogenesis［J］.Plant Cell Reports，2007，26（1）：21-28.
[21]	PINTOS B， MANZANERA J A， BUENO M A.Antimitotic agents increase the production of doubled-haploid embryos from cork oak anther culture［J］.Journal of Plant Physiology，2007，164（12）：1595-1604.
[22]	刘彩霞.小黑杨单倍体悬浮细胞筛选体系的建立及应用研究［D］.哈尔滨：东北林业大学，2021.
	LIU C X.Establishment and application of haploid suspension cell screening system from Populus simonii × P .nigra［D］.Harbin：Northeast Forestry University，2021.
[23]	杜兆伟，郑唐春，李爽，等.小黑杨快繁与再生体系的优化［J］.植物研究，2015，35（6）：904-907.
	DU Z W， ZHENG T C， LI S，et al.Rapid propagation and regeneration system of Populus simonii × Populus nigra ［J］.Bulletin of Botanical Research，2015，35（6）：904-907.
[24]	LIU C X， WANG S， LIU Y，et al.Exceptionally high genetic variance of the doubled haploid （DH） population of poplar［J］.Forestry Research，2023，34：1941-1950.
[25]	LAWRENCE E J， GRIFFIN C H， HENDERSON I R.Modification of meiotic recombination by natural variation in plants［J］.Journal of Experimental Botany，2017，68（20）：5471-5483.
[26]	LIU C X， FAN E Q， LIU Y H，et al.Genome-wide identification and analysis of the EIN3/EIL transcription factor gene family in doubled haploid （DH） poplar［J］.International Journal of Molecular Sciences，2024，25（7）：4116.
[27]	MAYOR P J， BERNARDO R.Genomewide selection and marker-assisted recurrent selection in doubled haploid versus F₂ populations［J］.Crop Science，2009，49（5）：1719-1725.
[28]	SMITH L G， HAKE S.The initiation and determination of leaves［J］.The Plant Cell，1992，4（9）：1017-1027.
[29]	DKHAR J， PAREEK A.What determines a leaf’s shape？［J］.EvoDevo，2014，5（1）：47.
[30]	OMIDBAKHSHFARD M A， FUJIKURA U， Olas J J，et al.GROWTH-REGULATING FACTOR 9 negatively regulates Arabidopsis leaf growth by controlling ORG3 and restricting cell proliferation in leaf primordia［J］.PLoS Genetics，2018，14（7）：e1007484.
[31]	鹿凯峰，李海阳，赵立子，等.杨树PagKNAT2/6a对叶片发育的影响［J］.分子植物育种，2025-01-13［2025-09-15］..
	LU K F， LI H Y， ZHAO L Z，et al.Effect of poplar PagKNAT2/6a on leaf development［J］.Molecular Plant Breeding，2025-01-13［2025-09-15］..
[32]	王连南，李远超，余乃通，等.MeTCP3a转录因子在木薯叶片发育中的功能鉴定［J］.作物学报，2024，50（11）：2720-2730.
	WANG L N， LI Y C， YU N T，et al.Functional identification of MeTCP3a transcription factor in cassava leaf development［J］.Acta Agronomica Sinica，2024，50（11）：2720-2730.
[33]	王俊丽，林鉴钊，李素丽，等.甘蔗茎尖初生增粗分生组织与顶端分生组织细胞分裂研究［J］.广西农业生物科学，2004，23（1）：11-14.
	WANG J L， LIN J Z， LI S L，et al.Studies on the cell division of primary thickening meristem and apical meristem of the shoot apex in sugarcane［J］.Journal of Guangxi Agricultural and Biological Science，2004，23（1）：11-14.
[34]	LIU H Z， GAO J H， SUN J T，et al.Dimerization of PtrMYB074 and PtrWRKY19mediates transcriptional activation of PtrbHLH186 for secondary xylem development in Populus trichocarpa ［J］.New Phytologist，2022，234（3）：918-933.
[35]	WANG Y R， YU J J， ZHANG X，et al.Morphological，histological，and transcriptome analysis of doubled haploid plants in poplars （Populus simonii × Populus nigra）［J］.Forests，2023，14（8）：1535.
[36]	GÓMEZ M S， SHERIDAN M L， CASATI P.E2Fb and E2Fa transcription factors independently regulate the DNA damage response after ultraviolet B exposure in Arabidopsis ［J］.The Plant Journal，2021，109（5）：1098-1115.

亲本及双单倍体无性系 DT and DH lines	第5片叶 The fifth leaf			第6片叶 The sixth leaf			第7片叶 The seventh leaf			第8片叶 The eighth leaf
亲本及双单倍体无性系 DT and DH lines	叶长 Leaf length /cm	叶宽 Leaf width /cm	叶长宽比 Leaf aspect ratio	叶长 Leaf length /cm	叶宽 Leaf width /cm	叶长宽比 Leaf aspect ratio	叶长 Leaf length /cm	叶宽 Leaf width /cm	叶长宽比 Leaf aspect ratio	叶长 Leaf length /cm	叶宽 Leaf width /cm	叶长宽比 Leaf aspect ratio
DT	7.03±1.93^a	6.33±2.72^a	1.19±0.27^b	7.27±1.88^a	7.20±2.43^a	1.03±0.11^b	8.43±0.32^a	8.30±0.36^a	1.02±0.04^d	9.13±0.35^a	8.47±0.23^a	1.08±0.02^c
DH1588	2.67±0.15^bc	2.47±0.58^b	1.12±0.24^b	3.20±0.10^b	3.30±0.17^bc	0.97±0.08^b	2.87±0.67^c	2.90±0.52^bc	0.98±0.06^d	2.90±0.26^c	2.50±0.10^c	1.16±0.07^bc
DH3-50	4.50±0.61^b	3.57±0.49^b	1.26±0.03^ab	4.20±0.70^b	3.87±0.49^b	1.08±0.06^b	4.37±0.58^b	3.53±0.55^b	1.24±0.04^c	4.83±0.55^b	3.97±0.12^b	1.22±0.13^bc
DH1717	3.63±0.81^bc	2.53±0.61^b	1.44±0.03^ab	3.40±0.44^b	2.07±0.21^bc	1.66±0.30^a	3.73±0.47^bc	2.60±0.35^c	1.44±0.04^b	3.63±0.40^c	2.70±0.26^c	1.34±0.03^b
DH1716	2.23±0.32^c	1.43±0.23^b	1.56±0.05^a	2.37±0.15^b	1.50±0.30^c	1.61±0.22^a	3.53±0.15^bc	2.17±0.31^c	1.65±0.18^a	3.73±0.47^c	2.33±0.45^c	1.62±0.20^a
